Home > Stainless Steel > Stainless Steel Corrugated Tubing
Here in the heart of Safat, Kuwait, Lathief Pipes stands as your trusted partner for industrial fluid solutions. We take pride in manufacturing and supplying high-grade Stainless Steel Corrugated Tubing, engineered to meet the demanding challenges of modern industry. Our commitment is to provide not just a product, but a reliable component that ensures durability and performance in even the most rigorous applications, supporting the growth and infrastructure of our region with quality you can depend on.

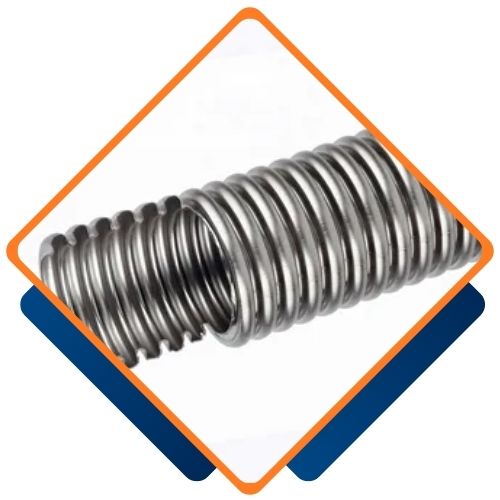

The strength of this tubing lies in its composition, typically crafted from high-quality austenitic stainless steel grades like 304 or 316. This choice gives the material excellent resistance to corrosion and high temperatures. The unique corrugated design is key, offering exceptional flexibility and the ability to absorb vibrations, thermal expansion, and movement within a system without sacrificing its structural integrity, making it a remarkably resilient and long-lasting solution for dynamic piping needs.
| Size Range | 6.35 mm To 50.8 mm OD |
| Length | As per Customer requirement, Maximum upto 22 Meter Long. |
| Thickness | 0.50 mm TO 6.0 mm |
| Dimenisons | ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS |
| Standard | ASTM A / ASME SA213 |
| Material | SS 304, SS 304L,SS 316,SS 316L |
| Form | Round, Square, Rectangular, Coil, U Tube, Pan Cake. |
| Shapes | Straight tube, Coil tubing |
| Type | As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed |
| Finish | SS cottugated tubes and corrugated pipes can be supplied in mechanical polished with various grits like at 80, 120, 240, 320, 400, 600 grit and mirror polished. |
| Packing | Sleeved, Ends Capped, Wooden Boxed |
| STAINLESS STEEL CORRUGATED TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304H | S30409 | – |
| 304L | S30403 | 1.4306 |
| 310S | S31008 | 1.4845 |
| 316S | S31600 | 1.4436 |
| 316H | S31609 | – |
| 316 TI | S31635 | 1.4571 |
| 316L (2.5 MIN MOLY) | S31603 | 1.4435 |
| 316L | S31603 | 1.4404 |
| 317L | S31703 | 1.4438 |
| 321 | S32100 | 1.4541 |
| 321H | S32109 | – |
| 347 | S34700 | 1.4550 |
Choosing Stainless Steel Corrugated Tubing from Lathief Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Lathief Pipes and Tubes, one of the largest suppliers of Stainless Steel Corrugated Tubing in Safat, Kuwait, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| SIZE OD | NOMINAL WALL THICKNESS | OUTSIDE DIAMETER TOLERANCE | LENGTH TOLERANCE | WALL THICKNESS TOLERANCE | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
Yes, we offer custom sizes for Stainless Steel Corrugated Tubing to meet your specific requirements. Our team at Lathief Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@lathiefpipes.com.
You’ll find Stainless Steel Corrugated Tubing extensively used in piping systems for transferring fluids and gases, including steam, water, and chemicals in petrochemical plants, refineries, and power generation facilities. They’re also employed in HVAC systems, exhaust systems, and instrumentation applications where flexibility, vibration absorption, and thermal expansion compensation are essential. Thanks to their blend of corrosion resistance, mechanical strength, and flexibility, Stainless Steel Corrugated Tubing stands out as the go-to choice for industries that demand reliable, durable, and high-performance tubing solutions.
