Home > Stainless Steel >Stainless Steel 317 and 317L EFW Pipes
Lathief Pipes, based in Safat, Kuwait, stands as a trusted partner for industrial and construction needs across the region. We take pride in supplying high-quality Stainless Steel 317/317L EFW Pipes, engineered to withstand the most demanding environments. Our commitment is to provide reliable solutions that ensure longevity and performance, supporting critical infrastructure and complex projects with materials that offer superior corrosion resistance and durability. When your project demands excellence, our expertise and quality products are here to serve your needs.

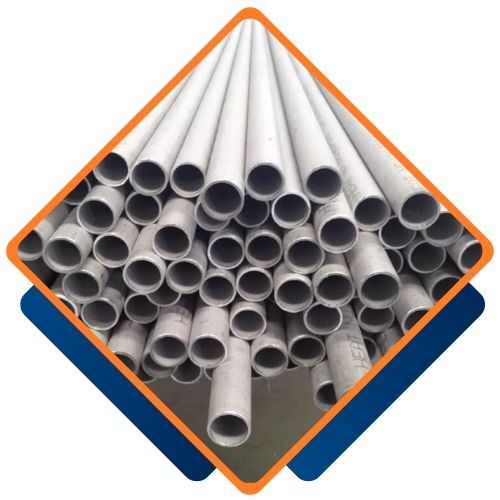

These pipes are crafted from an austenitic stainless steel with a enhanced chemistry, featuring higher levels of chromium, nickel, and molybdenum than standard 316 stainless steel. This specific composition provides outstanding resistance to a wide range of chemicals and corrosive environments. In terms of strength, they offer excellent mechanical properties, including good tensile strength and durability, making them suitable for high-temperature and high-pressure applications without compromising their structural integrity.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS |
| SS 317 | S31700 | 1.4449 | – | SUS 317 |
| SS 317L | S31703 | 1.4438 | X2CrNiMo18-15-4 | SUS 31 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | |||
| Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 317 and 317L EFW Pipes from Lathief Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
|
Physical Properties (Room Temperature) |
||
|
Specific Heat (0-100°C) |
500 |
J.kg-1.°K-1 |
|
Thermal Conductivity |
14.6 |
W.m -1.°K-1 |
|
Thermal Expansion |
16.5 |
mm/m/°C |
|
Modulus Elasticity |
193 |
GPa |
|
Electrical Resistivity |
7.4 |
μohm/cm |
|
Density |
7.99 |
g/cm |
We offer custom sizes for Stainless Steel 317 and 317L EFW Pipes to meet your specific needs. Our dedicated team at Lathief Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@lathiefpipes.com.
**Stainless Steel 317 and 317L EFW Pipes** are widely utilized in chemical processing, petrochemical facilities, and marine settings due to their excellent corrosion resistance. They are particularly suited for managing acids, solvents, and other aggressive fluids. In the power generation sector, you’ll find them in boilers, superheaters, and pipelines. The food, beverage, and pharmaceutical industries also rely on them for hygienic, contamination-free processing systems. Moreover, they are commonly used in oil and gas pipelines, offshore applications, and more.
