Home > Stainless Steel > Stainless steel 304 Welded Tubing
For those in Kuwait seeking dependable stainless steel tubing, Lathief Pipes in Safat stands as your trusted local partner. We specialize in the supply and manufacturing of high-quality Stainless Steel 304 Welded Tubing, providing a robust and readily available solution for a multitude of industrial and commercial needs. Our commitment is to deliver not just a product, but a reliable component backed by our expertise and dedication to meeting the specific demands of projects right here in Kuwait.
Stainless Steel 304 is known for its balanced composition, primarily a blend of chromium and nickel, which gives it excellent resistance to corrosion. This austenitic grade is not hardened by heat treatment, making it remarkably formable and tough. Its mechanical properties include good tensile strength and excellent durability, allowing it to perform reliably under a wide range of temperatures and stresses, which is why it’s such a popular choice for so many applications.
| Tube Range | 1/2″ OD – 12″ OD, Guage: 25 SWG – 10 SWG |
| Outer Diameter | 3.00 mm – 219.10 mm |
| Wall Thickness | 0.40 mm – 12.70 mm |
| Schedules | 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH |
| Length | Upto 30 meters, Custom Cut Lengths |
| Specifications | ASTM A213 / ASTM SA213 |

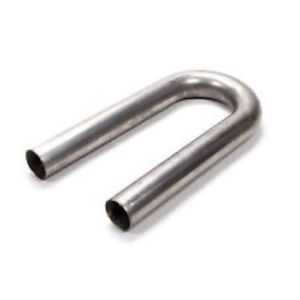

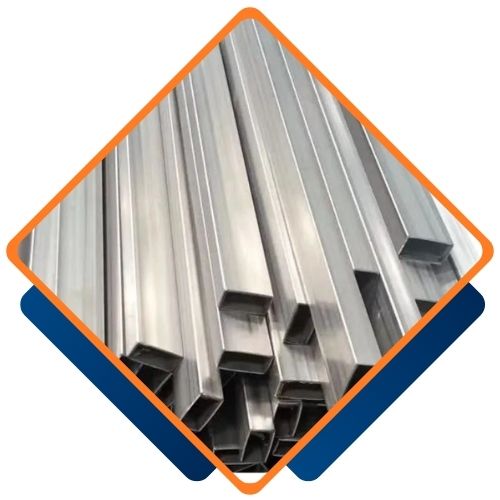

| Types | Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes |
| SS | 304 |
|---|---|
| Ni | 8 – 11 |
| Fe | Balance |
| Cr | 18 – 20 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.040 max |
| S | 0.030 max |
| Grade | 304 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 92 |
| Brinell (HB) max | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 304 Welded Tubing from Lathief Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Lathief Pipes and Tubes is the largest supplier of Stainless Steel 304 Welded Tubing in Safat, Kuwait. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Yes, Lathief Pipes and Tubes offer large custom designs for Stainless Steel 304 Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@lathiefpipes.com.

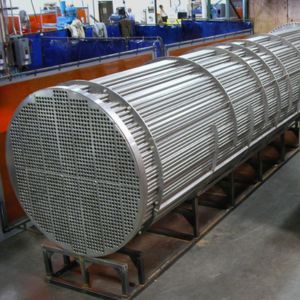

You’ll find Stainless Steel 304 Welded Tubing commonly used in heat exchangers, boilers, condensers, and piping systems where corrosion resistance and precision are essential. It’s also utilized in chemical and petrochemical plants, food and beverage processing, pharmaceutical sectors, and marine environments. Furthermore, it’s ideal for structural frameworks, HVAC systems, water treatment facilities, and other industrial applications that require long-lasting reliability and strength. With its excellent weldability, corrosion resistance, and mechanical performance, Stainless Steel 304 Welded Tubing stands out as a fantastic choice for both industrial and commercial needs.
