Home > Duplex Steel > Duplex Steel Tubing 2205
Lathief Pipes, based in the industrial heart of Safat, Kuwait, has built a strong reputation as a trusted partner for demanding industrial applications. We take pride in supplying high-performance materials, and our Duplex Steel 2205 tubing is a prime example of this commitment. This advanced alloy is specifically engineered to excel where ordinary stainless steels might fall short, offering a remarkable combination of strength and corrosion resistance that stands up to some of the toughest environments.
The strength of Duplex 2205 lies in its unique metallurgical structure, which blends the benefits of both austenitic and ferritic stainless steels. Its composition includes a careful balance of chromium, nickel, molybdenum, and nitrogen. This results in outstanding mechanical properties, including a yield strength that is approximately double that of standard 304 or 316 stainless steel. This gives it exceptional resistance to stress corrosion cracking, making it both incredibly tough and durable.
| Tube Specifications |
|
|---|---|
| Tube Standard | DIN, JIS, ASTM, EN, GB, AISI, ASME Tube Supplier |
| Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Length | Single Random, Double Random, Standard & Cut length |
| Type | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Tube |
| Tube Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Tube Thickness | 0.3mm – 50 mm |
| Seamless Tube Outer Diameter | 6.00 mm OD up to 250 mm OD, Sizes up to 12” NB |
| EFW Tube size | 5.0 mm – 1219.2 mm |
| Welded Tube size | 5.0 mm – 1219.2 mm |
| wall thickness | 0.020″ –0.220″ (special wall thicknesses available) |
| End | Plain End, Beveled End, Treaded Tube. |
| Specialized in |
|
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Tube Marking | All Tubes are marked as follows: Grade, Standard, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |

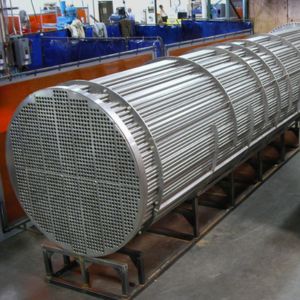

| Application | Boiler and Heatexchanger, Oil Tube, Fluid Tube, Gas Tube, |

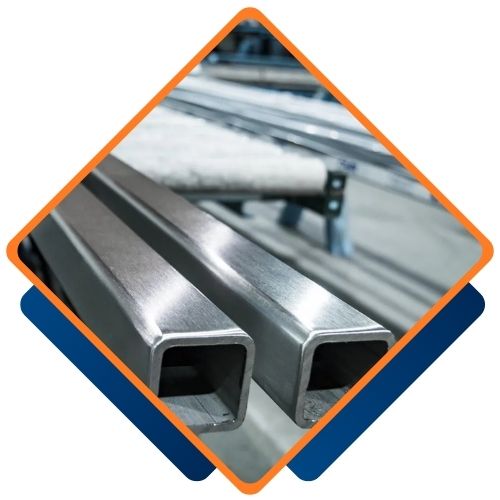

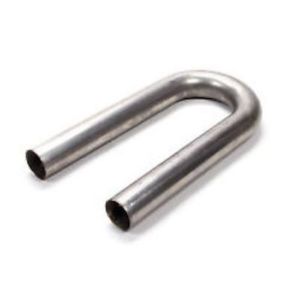

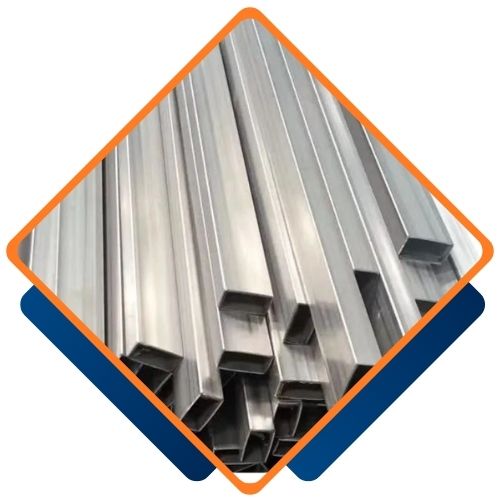

| Form | Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Tubes, “U” Shape, Pan Cake Coils etc. |
| Material Test Certificates (MTC) |
|
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish,etc |
| Chemical Composition % | ||||
| Cr | Ni | Mo | C | N |
| 22.0-23.0 | 4.50-6.50 | 3.00-3.50 | .030 Max | 0.14-0.20 |
| Mn | Si | P | S | Fe |
| 2.00 Max | 1.00 Max | .030 Max | .020 Max | Balance |
PIPE STANDARD | WERKSTOFF NR. | UNS |
Duplex 2205 Tube | 1.4462 / 1.4462 | S31803 / S32205 |
| Duplex Stainless Steel | 2205 |
| Density | 7.805 |
| Melting Range,℃ | 1450 ℃ |
| Elongation % | 25 min. |
| Tensile Strength (Mpa) | 655 |
| Yield Strngth (Mpa) | 450 |
| Hardness (Brinell) | 293 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Duplex Steel Tubing 2205 from Lathief Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Duplex steel solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Lathief Pipes and Tubes, one of the largest suppliers of Duplex Steel Tubing 2205 in the Safats, Kuwait. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Duplex steel products in the region, delivering reliable solutions to meet diverse project requirements.
Yes, we provide custom sizes for Duplex Steel Tubing 2205 to meet your specific requirements. At Lathief Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@lathiefpipes.com.
Across various industries that prioritize both strength and corrosion resistance, Duplex Steel Tubing 2205 is widely utilized. In the oil and gas sector, it’s commonly found in offshore platforms, subsea pipelines, and processing units that face saline and aggressive chemicals. Chemical and petrochemical plants rely on it for transporting corrosive fluids and acids. Power generation facilities use it in heat exchangers, condensers, and boilers. Moreover, it’s also applied in marine engineering, desalination plants, and the pulp and paper industries. With its blend of mechanical durability and corrosion resistance, Duplex Steel Tubing 2205 is truly an ideal choice for demanding industrial environments.
